French Type Guillemin Fire Hose Coupling (DN25–DN150)
French type Guillemin (DSP) symmetrical fire hose coupling is compliant with EN 14420-8 / NF E29-572. It connects fire hoses to hydrants, fire pumps and nozzles with a quick 1/4 turn.Made of lightweight aluminum A356-T6 (brass and stainless steel optional), with NBR/EPDM seals, available in DN25 to DN150 for fire fighting, industrial and road/rail tanker applications.
| Quantity: | |
|---|---|
DN25-DN150
Product Description
French Type Guillemin (DSP) Fire Hose Coupling

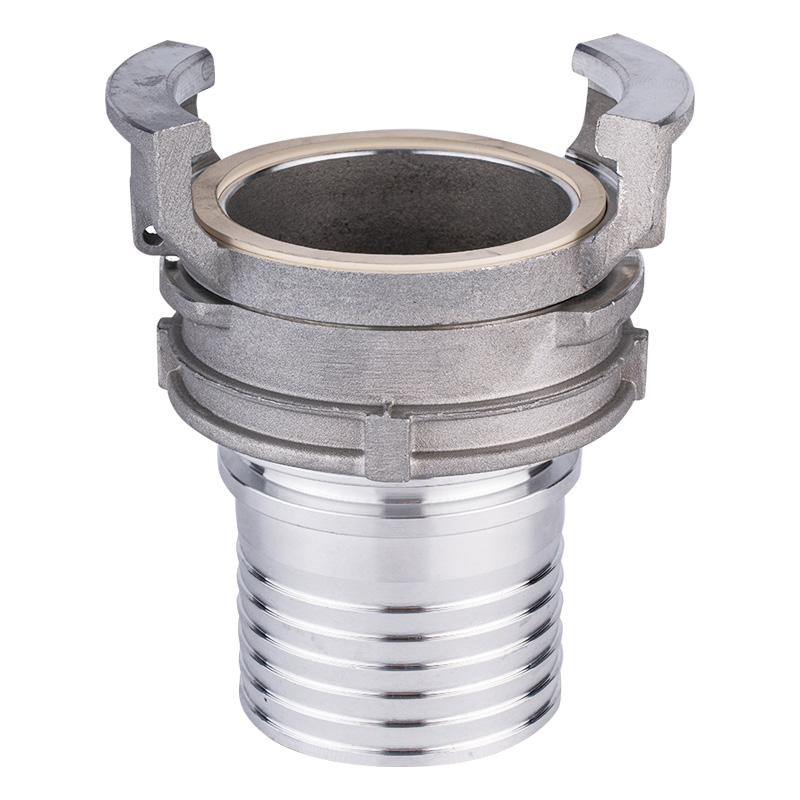

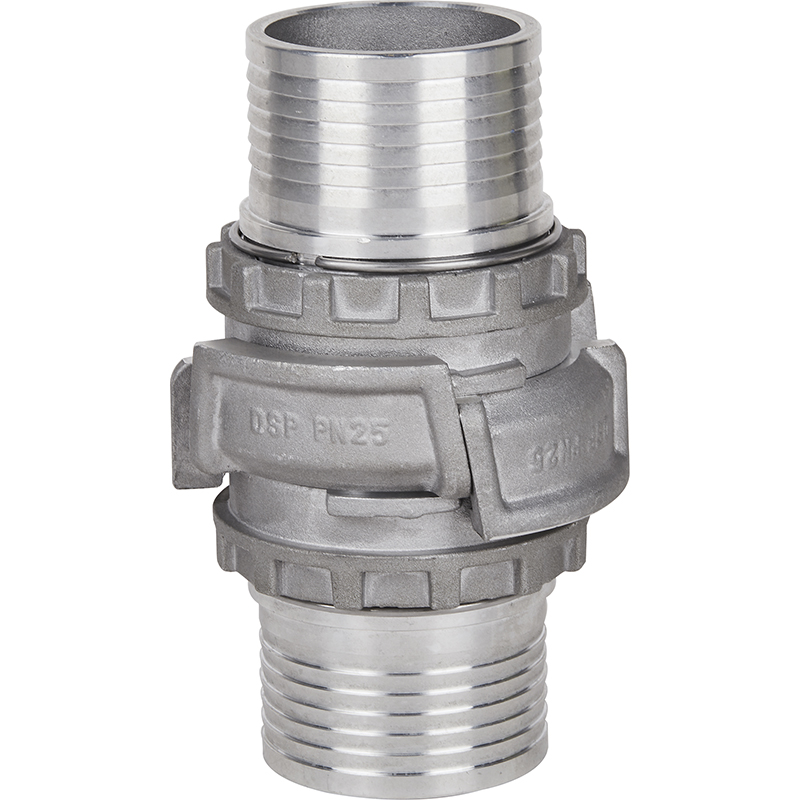

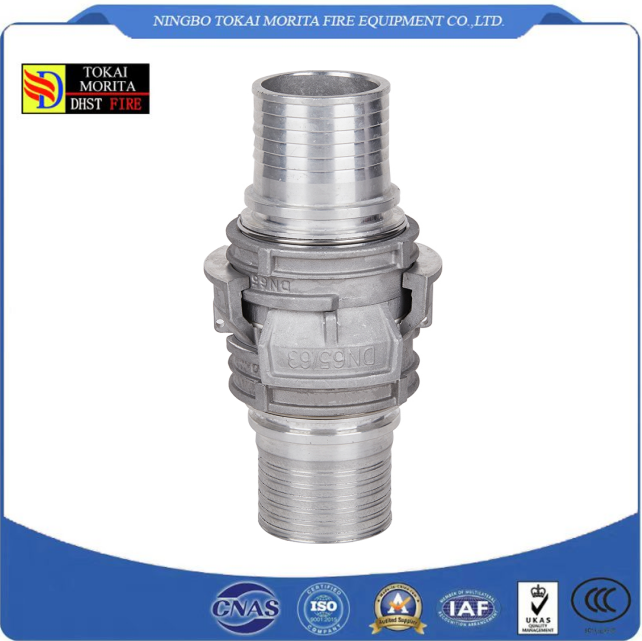

French type Guillemin coupling is a symmetrical quick coupling originally designed in France and manufactured to EN 14420-8 / NF E29-572. It is used to join fire hoses to fire hydrants, fire-engine pumps, water monitors and nozzles for the delivery of water or foam solution. Two identical halves, each with two lugs, are pushed together seal-to-seal and locked by turning the outer ring 1/4 turn with a hook wrench — no tools, no thread alignment, fast and reliable even in dark or wet conditions.
Key Features
Symmetrical design: two identical halves, interchangeable and easy to maintain
1/4-turn lock with hook wrench, quick connect/disconnect
Lightweight aluminum body, corrosion resistant, easy to handle on site
Full size range DN25–DN150, covering all common fire and industrial duties
NBR/EPDM standard seal; FKM/PTFE available for chemical service
BSP / NPT thread options on threaded variants
Surface finish: polished or sand-blasted
Available Sizes
| No. | Size (DN) | Inch Size | Material | Working Pressure | Seal / Remark |
| 1 | DN25 | 1" | Aluminum A356-T6 | 16 bar (230 psi) | NBR / EPDM |
| 2 | DN32 | 1-1/4" | Aluminum A356-T6 | 16 bar (230 psi) | NBR / EPDM |
| 3 | DN40 | 1-1/2" | Aluminum A356-T6 | 16 bar (230 psi) | NBR / EPDM |
| 4 | DN50 | 2" | Aluminum A356-T6 | 16 bar (230 psi) | NBR / EPDM |
| 5 | DN65 | 2-1/2" | Aluminum A356-T6 | 16 bar (230 psi) | NBR / EPDM |
| 6 | DN80 | 3" | Aluminum A356-T6 | 10 bar (145 psi) | NBR / EPDM |
| 7 | DN100 | 4" | Aluminum A356-T6 | 10 bar (145 psi) | NBR / EPDM |
| 8 | DN125 | 5" | Aluminum A356-T6 | 10 bar (145 psi) | NBR / EPDM |
| 9 | DN150 | 6" | Aluminum A356-T6 | 10 bar (145 psi) | NBR / EPDM |
Materials
Body: Aluminum A356-T6 (heat treated, gravity die-cast)
Alternative: Brass (forged), Stainless steel 316 (investment cast), Polypropylene
Seal: NBR standard; EPDM / FKM / PTFE on request
ApplicationsFire fighting and fire trucks, fire hydrants, industrial installations, irrigation, loading/unloading of water and non-corrosive fluids, road and rail tankers. Not suitable for steam or gas service.
Standard: EN 14420-8 / NF E29-572 (French type DSP).
