Fire hose nozzles are critical components in firefighting operations, serving as the endpoint through which water or fire suppressants are delivered to combat blazes. The effectiveness of a firefighting operation heavily depends on the selection of the appropriate nozzle type, as different situations require varying spray patterns, flow rates, and pressure levels. With advancements in firefighting technology, a diverse range of fire hose nozzles has been developed to address specific needs and challenges faced by firefighters.
Understanding the various fire hose nozzle types is essential for fire departments, emergency responders, and safety professionals. This comprehensive analysis delves into the different types of fire hose nozzles, their operational mechanisms, applications, and the advantages they offer in specific firefighting scenarios. By examining these elements, we aim to provide valuable insights that can aid in equipment selection and firefighting strategy development.

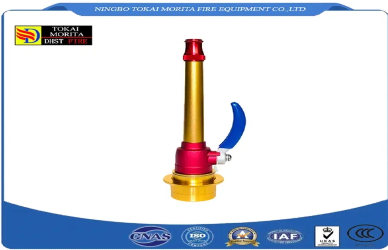

Smooth bore nozzles, also known as solid stream nozzles, are among the most traditional types of fire hose nozzles used in firefighting. These nozzles feature a simple design with a straight, unobstructed bore that allows water to flow through at high velocity, creating a solid, cohesive stream. The simplicity of the design results in minimal friction loss, enabling firefighters to achieve greater reach and penetration, which is crucial in attacking fires from a distance or penetrating through intense heat and flames.
The effectiveness of smooth bore nozzles lies in their ability to deliver large volumes of water with minimal disruption to the stream's integrity. This characteristic makes them ideal for outdoor firefighting, structural attacks where direct water application is necessary, and situations requiring the knockdown of large fires quickly. Additionally, smooth bore nozzles are less prone to clogging, as there are no internal components to obstruct the flow, which enhances their reliability in environments where debris may be present.
However, the fixed flow rate and lack of adjustability can be limiting factors. Firefighters must rely on pump operators to adjust the pressure and flow from the source, which may not offer the immediate adaptability needed in rapidly changing fire conditions. Understanding these limitations is important for effective deployment and ensuring firefighter safety.

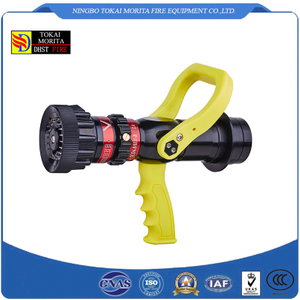

Combination nozzles, commonly referred to as fog nozzles, provide versatility by allowing firefighters to adjust the spray pattern from a straight stream to a wide fog. This adjustability is achieved through internal mechanisms that alter the water's direction as it exits the nozzle. The fog pattern creates small droplets of water, increasing the surface area and enhancing heat absorption, which is highly effective in cooling hot gases and reducing the risk of flashover in interior firefighting operations.
The ability to switch between patterns enables firefighters to adapt to different fire scenarios quickly. A straight stream can be used for direct fire attack, while the fog pattern can protect firefighters by creating a water shield against radiant heat and improving visibility by displacing smoke. This flexibility makes combination nozzles suitable for a wide range of firefighting situations, including structural fires and vehicle fires.
On the downside, fog nozzles can contribute to increased steam production in enclosed spaces, which may pose a risk to firefighters not wearing proper protective equipment. Furthermore, the intricate design requires regular maintenance to ensure functionality, and they may be more susceptible to clogging when used with water sources containing debris.
Adjustable gallonage nozzles offer the capability to manually set the desired flow rate, providing control over the volume of water being applied. This feature is particularly beneficial in managing water supply limitations and preventing unnecessary water damage during firefighting operations. Firefighters can adjust the flow to match the intensity of the fire, ensuring efficient use of water resources.
These nozzles typically include indicators for different flow settings, allowing for precise adjustments. The ability to control flow rate without changing nozzles enhances operational efficiency and safety, as firefighters can respond to changing conditions without interrupting the water flow. Adjustable gallonage nozzles are especially useful in scenarios where water conservation is critical, such as in rural areas with limited water supply or in situations requiring minimal water runoff.
Despite their advantages, these nozzles require firefighters to be knowledgeable about appropriate flow rates for different fire scenarios. Incorrect settings can lead to insufficient fire suppression or excessive water usage. Regular training and familiarity with the equipment are essential to maximize the benefits of adjustable gallonage nozzles.
Automatic nozzles are designed with a mechanism that adjusts the orifice size in response to changes in water pressure, maintaining a consistent nozzle pressure and stream reach. This self-regulating feature allows firefighters to focus on firefighting tactics rather than manually adjusting nozzle settings. Automatic nozzles are beneficial in maintaining effective stream performance despite fluctuations in pump pressure or hose line kinks.
The consistent stream quality provided by automatic nozzles enhances fire suppression effectiveness, particularly in complex firefighting operations where water pressure may vary. They are well-suited for use in combination with variable pressure water supplies and can be an asset in both urban and wildland firefighting scenarios.
However, the complexity of automatic nozzles means that they require regular maintenance to ensure reliability. The internal mechanisms can be more susceptible to wear and damage, and repairs may be more complicated compared to simpler nozzle designs. Fire departments must weigh the benefits of automatic pressure regulation against the potential for increased maintenance requirements.

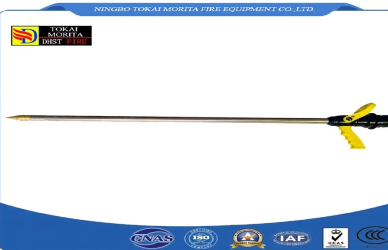

Specialty nozzles are designed for specific firefighting applications that standard nozzles cannot adequately address. These include piercing nozzles, cellar nozzles, and water curtain nozzles, among others. Piercing nozzles are used to penetrate through barriers such as walls or roofs to deliver water to otherwise inaccessible areas. They are particularly useful in combating attic fires or fires behind walls without causing extensive structural damage.
Cellar nozzles, also known as Bresnan distributors, are designed to extinguish fires in basements or confined spaces. They produce a circular spray pattern, dispersing water in all directions to saturate the area effectively. Water curtain nozzles create a wall of water that can protect exposures from radiant heat and flame impingement, which is vital in preventing the spread of fire to adjacent structures.
In historical contexts, antique brass fire hose nozzles were commonly used and are now sought after as collectibles. These brass fire hose nozzle antique pieces represent the evolution of firefighting equipment and are of interest to historians and enthusiasts alike.
While specialty nozzles offer solutions to unique firefighting challenges, they require firefighters to be trained in their specific use cases and deployment techniques. Incorporating these nozzles into a fire department's arsenal enhances their capability to tackle a broader range of fire scenarios effectively.
Fire hose nozzles adapted for use with garden hoses have become popular for residential fire protection and heavy-duty cleaning tasks. These nozzles offer enhanced water flow and durability compared to standard garden hose nozzles. Constructed with robust materials, they can withstand higher pressures and offer adjustable spray patterns ranging from a gentle mist to a powerful jet stream.
Homeowners in wildfire-prone areas may utilize a fire hose nozzle for garden hose as a precautionary measure to protect their property. These nozzles can be connected to standard garden hoses, allowing for immediate response in the event of spot fires caused by embers. Additionally, they are useful for high-pressure cleaning tasks, such as washing driveways, siding, or vehicles, due to their increased water output and control.
When selecting a fire hose nozzle for residential use, it's important to ensure compatibility with the garden hose and water supply system. Consideration should be given to the nozzle's material construction, flow rate capabilities, and ease of use. Investing in a quality nozzle can provide peace of mind and enhance outdoor maintenance activities.
The materials used in the construction of fire hose nozzles significantly impact their durability, weight, and performance. Common materials include aluminum, brass, stainless steel, and composite plastics. Brass nozzles, such as the aforementioned antique models, are known for their durability and resistance to corrosion. They have been widely used historically and are still preferred in certain applications for their robustness.
Aluminum nozzles offer a lightweight alternative without sacrificing strength, making them ideal for reducing the physical strain on firefighters during extended operations. Stainless steel components are used in nozzles requiring enhanced strength and corrosion resistance, especially in harsh environments or when using suppressants that may be chemically aggressive.
Advancements in materials technology have led to the development of composite and thermoplastic nozzles. These materials provide weight savings and can offer insulation properties, protecting firefighters from extreme temperatures conducted through the nozzle. When selecting a nozzle, the operating environment, type of fire, and personal preference all play a role in determining the most suitable material.
Regular maintenance of fire hose nozzles is essential to ensure their reliability and longevity. Firefighting equipment is subjected to harsh conditions, and neglecting maintenance can lead to equipment failure at critical moments. Maintenance procedures include regular inspection for physical damage, cleaning to remove debris and contaminants, lubrication of moving parts, and testing for proper operation.
Fire departments should establish maintenance schedules in accordance with manufacturer recommendations and industry standards. Training personnel on proper care techniques and recognizing signs of wear can prevent unexpected failures. Additionally, keeping records of maintenance activities contributes to compliance with safety regulations and can be valuable for equipment replacement planning.
Incorporating maintenance best practices extends the service life of nozzles and ensures they function as intended during firefighting operations. This proactive approach enhances firefighter safety and the effectiveness of fire suppression efforts.
The field of firefighting equipment has seen significant technological advancements, with modern nozzles incorporating features that enhance performance and safety. Developments include integrated flow meters, pressure gauges, and tactile feedback mechanisms that provide firefighters with real-time information about water flow and pressure. These innovations enable better decision-making in dynamic firefighting environments.

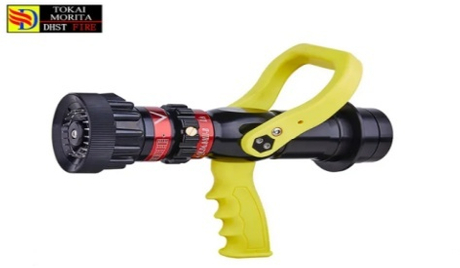

Some advanced nozzles feature ergonomic designs to reduce fatigue, such as pistol grips and lightweight materials. Nozzles with thermal insulating handles protect firefighters from extreme temperatures, and anti-kickback designs help maintain control under high-pressure conditions. Additionally, compatibility with foam injection systems allows for versatile use in combating different types of fires, including chemical and petroleum-based fires.
Embracing these technological advancements requires investment and training but can significantly improve operational efficiency and firefighter safety. Fire departments must evaluate the cost-benefit aspects of adopting new technologies in their equipment procurement strategies.
Proper training in the use of different fire hose nozzles is crucial for maximizing their effectiveness and ensuring firefighter safety. Firefighters must understand the operational characteristics of each nozzle type, including flow rates, spray patterns, and potential risks. Training should include hands-on practice in controlled environments to build proficiency and confidence.
Scenario-based training exercises help firefighters learn how to select and adjust nozzles based on specific fire conditions. Emphasis on teamwork and communication during nozzle operations enhances the coordination required in actual firefighting situations. Regular refresher courses ensure that skills remain sharp and that firefighters stay updated on the latest equipment and techniques.
Investing in comprehensive training programs not only improves firefighting effectiveness but also reduces the risk of accidents and injuries. Fire departments should prioritize training as an integral component of their operational readiness strategies.
Fire hose nozzles are indispensable tools in firefighting, with each type offering specific advantages tailored to different fire scenarios. From the straightforward reliability of smooth bore nozzles to the versatility of combination nozzles and the specialized applications of specialty nozzles, understanding the distinctions is essential for effective firefighting operations. The integration of brass fire hose nozzle antique designs into modern equipment highlights the continuous evolution of firefighting technology.
Selecting the appropriate nozzle involves considering factors such as the type of fire, environment, available water supply, and the specific objectives of the firefighting team. Regular maintenance, training, and staying abreast of technological advancements further enhance the effectiveness and safety of firefighting efforts. By thoroughly understanding and appropriately utilizing the different types of fire hose nozzles, firefighters can improve their response capabilities and better protect lives and property.
