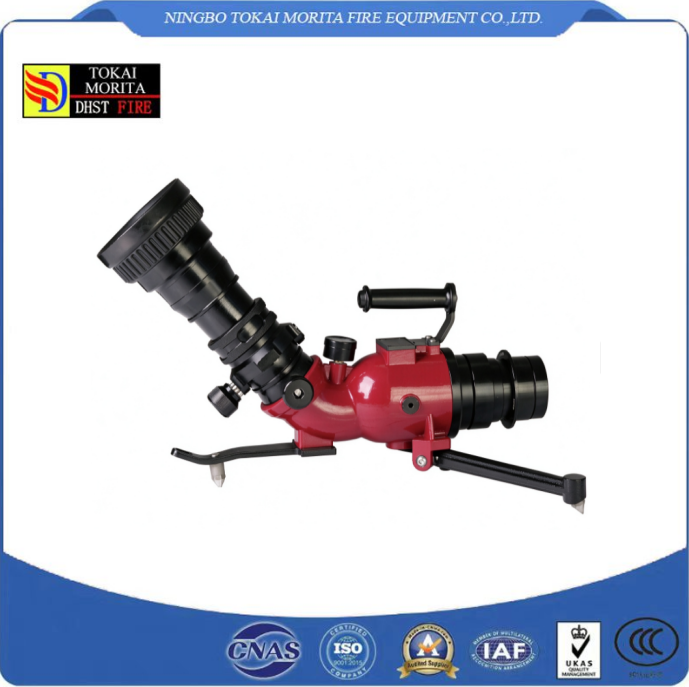

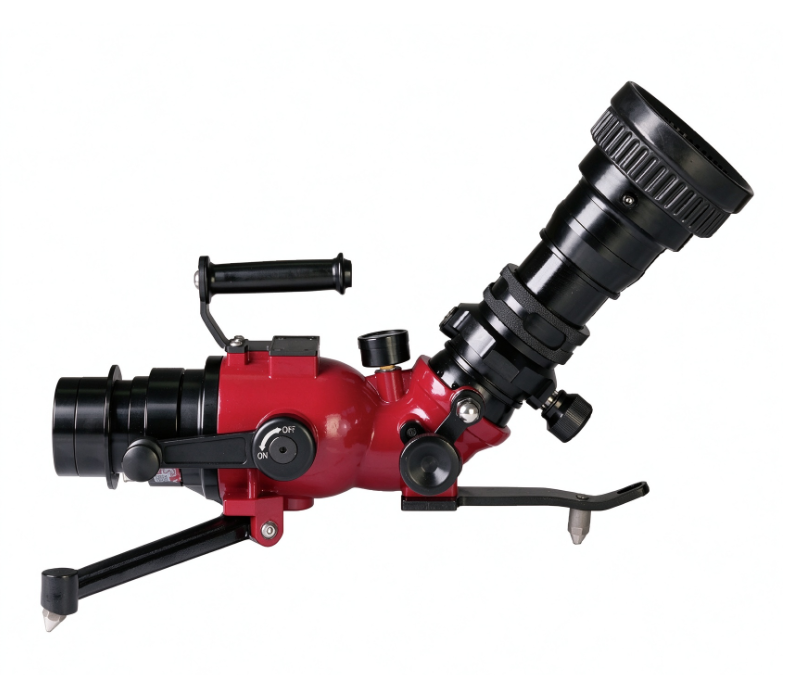

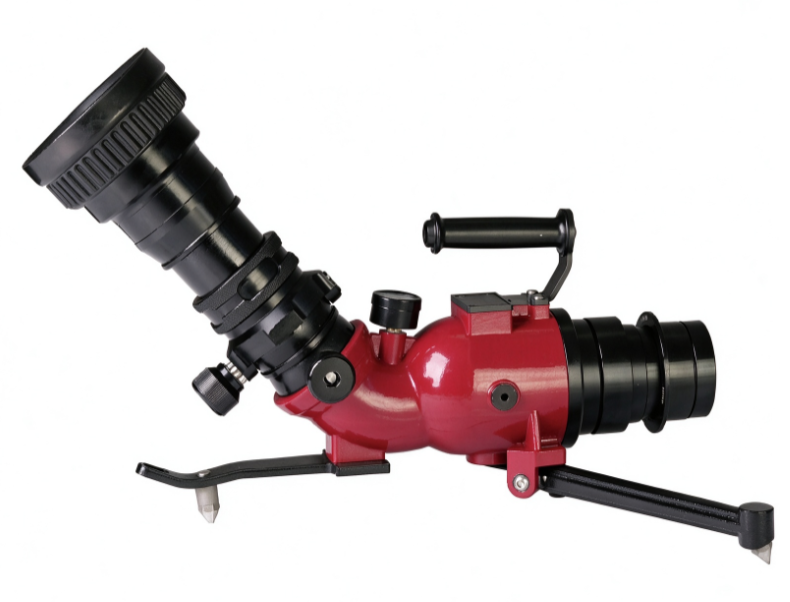

The Quick Attack Fire Monitor is a portable mobile fire water cannon designed for rapid fire attack deployment. Constructed with lightweight high-strength aluminum alloy, the nozzle enables manual switching between solid jet and fog spray patterns.
Equipped with vertical self-locking rotation and horizontal swing capability, this monitor can be quickly set up on-site. It delivers reliable performance, simple assembly and compact footprint, suitable for warehouse, factory, wildland and large-area fire rescue operations.
| Quantity: | |
|---|---|
PSY6/30W-DHST
TOKAIMORITA
Product Description
The Quick Attack Fire Monitor is a portable mobile fire water cannon built for fast deployment during fire attack operations. Manufactured from lightweight high-strength aluminum alloy, its nozzle allows manual switching between solid jet stream and fog spray patterns to meet different fire suppression requirements.
It features vertical self-locking rotation and horizontal swing function. The monitor can be rapidly assembled and positioned at fire scenes, offering stable performance and a compact structure. Widely applied to fire fighting in warehouses, industrial plants, wildland areas and large-space emergency rescue scenarios.
Item | PSY6/30W-DHST | PSY8/40W-DHST |
|---|---|---|
Model | PSY6/30W-DHST | PSY8/40W-DHST |
Nominal Flow Rate | 30L/S | 40L/S |
Range | ≥ 60m | ≥ 65m |
Nominal Pressure | 0.8MPa | 0.8MPa |
Max. Working Pressure | 1.2MPa | 1.2MPa |
Max. Spray Angle | ≥120° (Jet / Fog, manual adjustable) | ≥120° (Jet / Fog, manual adjustable) |
Vertical Rotation Angle | +30° ~ +70° (with self-locking function) | +30° ~ +70° (with self-locking function) |
Horizontal Rotation Angle | Left 20° ~ Right 20° | Left 20° ~ Right 20° |
Operating Temperature | 4℃ ~ 55℃ | 4℃ ~ 55℃ |
Inlet Interface | KYKA80Z | KYKA80Z |
Product Weight | 8.5KG | 8.5KG |
Overall Dimension | 605×525×420mm | 605×525×420mm |
