Product Description

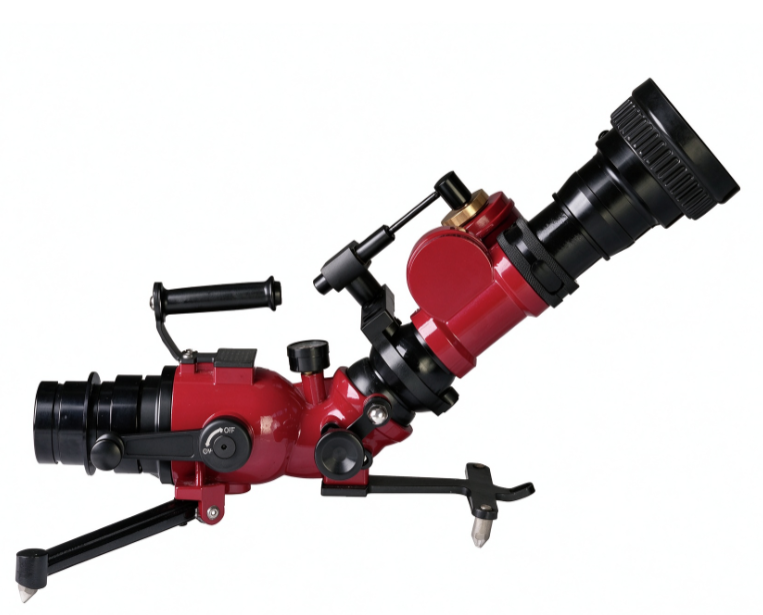

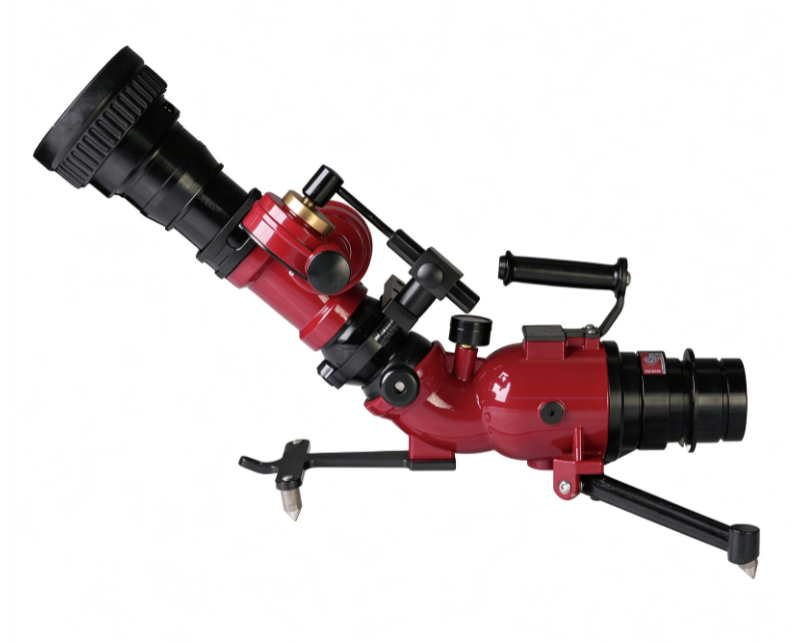

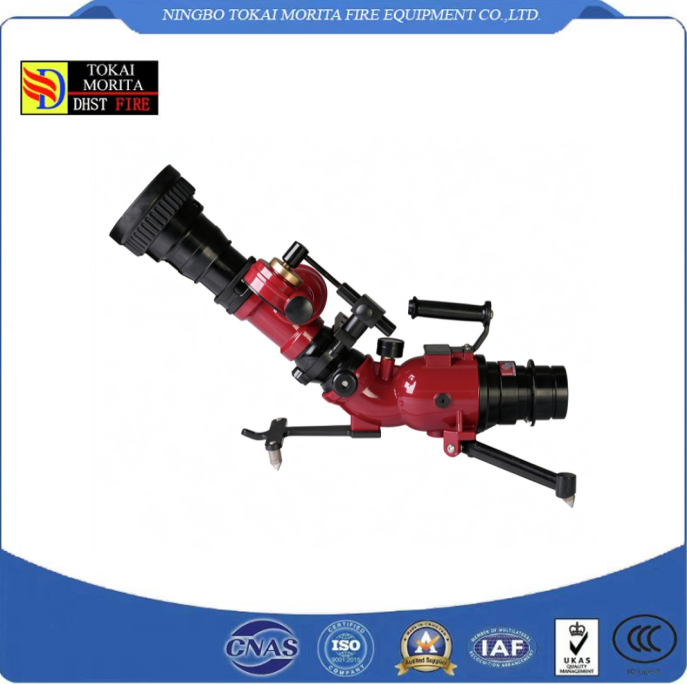

The Portable Oscillating Fire Monitor is a mobile self-oscillating fire water cannon designed for continuous area fire protection. Made of lightweight high-strength aluminum alloy, the nozzle can be manually switched between solid jet and fog spray modes to cope with various fire scenarios.
It is equipped with vertical self-locking rotation function and 3 optional self-swing angle settings (20°, 30°, 40°) via manual gear adjustment. Once deployed, the unit swings automatically to cover a large coverage zone, minimizing firefighters' exposure in high-risk fire zones. Featuring fast installation, stable performance and compact structure, this fire monitor is suitable for petrochemical sites, storage warehouses, manufacturing plants, wildland fire control and large-area emergency fire rescue.
Item | PSY6/30WB-DHST | PSY8/40WB-DHST |
|---|---|---|
Model | PSY6/30WB-DHST | PSY8/40WB-DHST |
Nominal Flow Rate | 30L/S | 40L/S |
Range | ≥ 60m | ≥ 65m |
Nominal Pressure | 0.8MPa | 0.8MPa |
Max. Operating Pressure | 1.2MPa | 1.2MPa |
Maximum Spray Angle | ≥120° (Jet / Fog, manual adjustable) | ≥120° (Jet / Fog, manual adjustable) |
Vertical Rotation Angle | +30° ~ +70° (with self-locking function) | +30° ~ +70° (with self-locking function) |
Self-swing Angle | 20°, 30°, 40° (manual gear adjustment) | 20°, 30°, 40° (manual gear adjustment) |
Operating Temperature | 4℃ ~ 55℃ | 4℃ ~ 55℃ |
Input Interface | KYKA80Z | KYKA80Z |
Product Weight | 11.5KG | 11.5KG |
Overall Dimension | 715×525×535mm | 715×525×535mm |
