TOKAIMORITA
Product Description

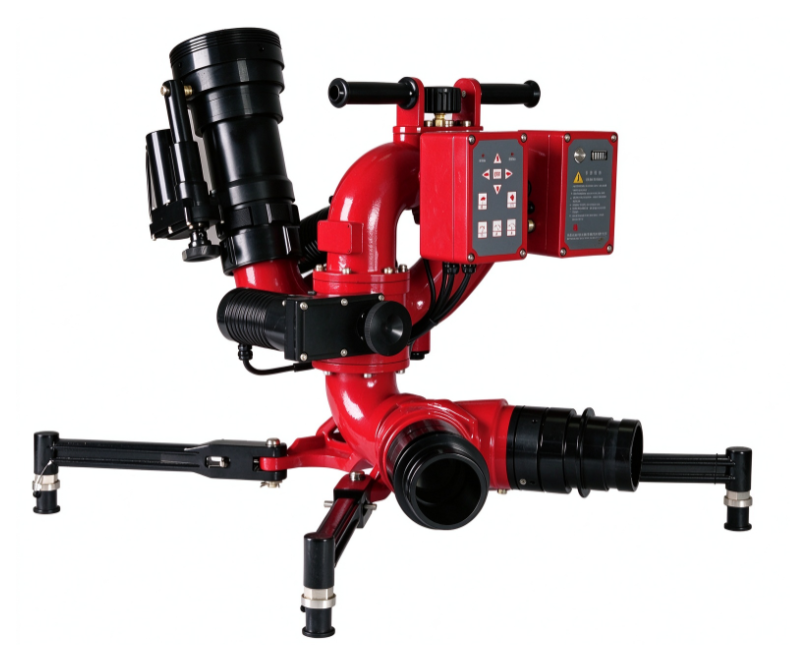

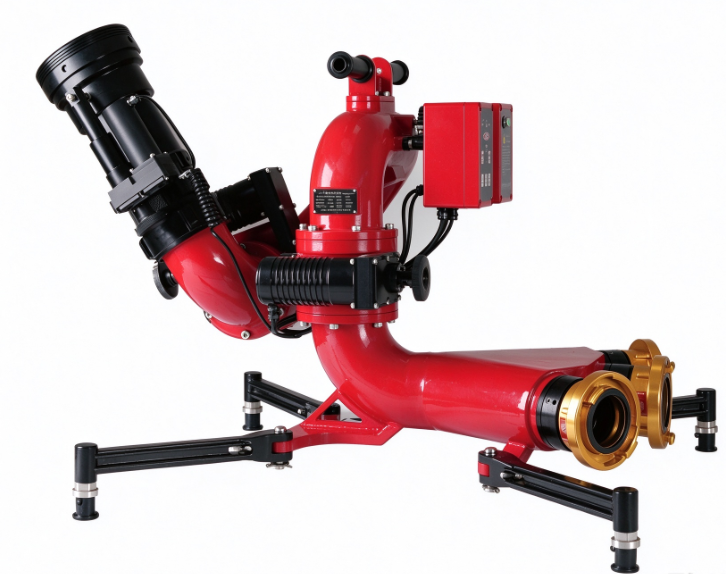

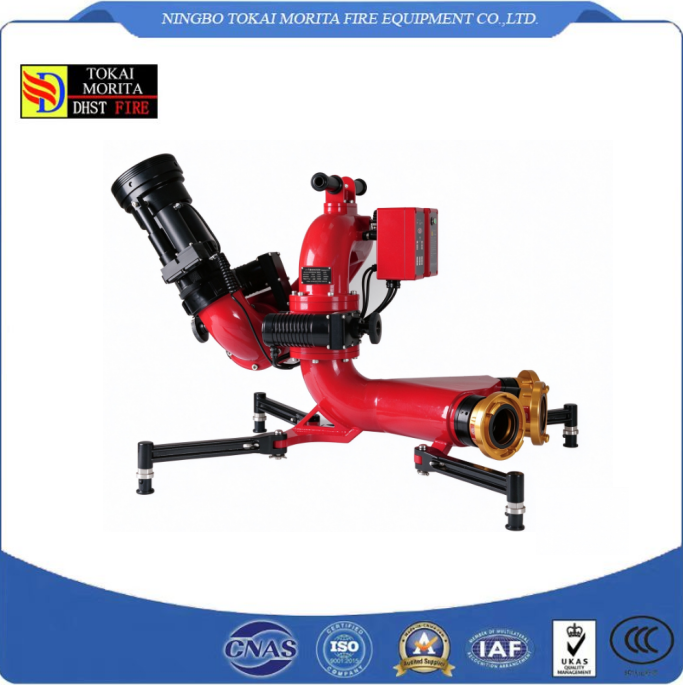

PSKDY series mobile electric remote fire monitor is a newly developed portable fire monitor with leading technical performance among similar products globally. With compact structure, long water jet range and concentrated water droplets, this fire monitor is simple to operate. Users can control the monitor via wireless remote controller or main control box. It is equipped with independent rechargeable battery pack for convenient on-site deployment. Widely applied for fire protection in petrochemical tank farms, large storage yards and manufacturing plants, it is also suitable for fire brigade emergency use.
The cannon body is made of stainless steel to guarantee excellent corrosion resistance.
Spring-loaded support legs adapt to complex and uneven ground conditions.
Driven by DC brushless motor for precise control and extended service life.
Check valve fitted on water inlet pipeline to guarantee safe operation for single water supply hose.
Product performance meets standard requirements of GB19156-2019 and GB19157-2003.
Nominal Flow Rate: 30L/s ~ 80L/s
Working Pressure: 0.8MPa / 1.0MPa
Max Operating Pressure: 1.1MPa
Wireless Control Distance: ≥150m
Working Voltage: DC24V
Horizontal Rotation Range: Left 20° ~ Right 20°
Vertical Rotation Range: +30° ~ +70°
Max Spray Angle: ≥120°
Working Temperature: 4℃ ~ 55℃
