For industrial safety officers and facility contractors, dividing a high-pressure water source efficiently is a critical operational requirement. A misaligned or poorly secured divider does not just reduce flow. It creates severe safety hazards. Managing emergency firefighting operations demands extreme precision under pressure. Industrial machinery cooling or temporary construction site water distribution also share this exact need. Your entire system’s reliability depends entirely on precise equipment selection and rigorous installation protocols. Any failure during a high-pressure surge can damage infrastructure and endanger lives immediately. This guide provides a bottom-of-funnel blueprint for evaluating, installing, and maintaining a Fire Water Divider. We back these insights using proven industrial standards and practical field experience. You will discover exactly how to anchor systems safely. We also cover hydraulic sizing to prevent bottlenecking. Let us explore the exact steps required for a flawless, code-compliant deployment.
Material Durability dictates lifespan: Selecting forged A6061 aluminum or YL112 die-cast bodies with anodized or powder-coated finishes is non-negotiable for corrosion resistance.
High-pressure stability requires rigid securing: Unsecured dividers can shift violently under 250+ PSI; structural mounting (brackets or welding) is mandatory.
Sizing prevents friction loss: Matching the inlet (e.g., 65mm–300mm) and outlet configurations to exact GPM (gallons per minute) requirements prevents systemic pressure drops.
Partnering with a specialized water divider manufacturer ensures compliance with specific industrial and local fire safety codes (such as NFPA guidelines).
Selecting the right hardware before installation prevents catastrophic failures later. Engineers must evaluate configurations, exact sizing, and material integrity simultaneously. A minor miscalculation in outlet sizing restricts critical water flow. Subpar materials crack under sudden pressure surges. We must look closely at each specific variable.
You must map your configuration to your specific operational needs. Choosing between two-way and three-way models dictates your system's overall flexibility.

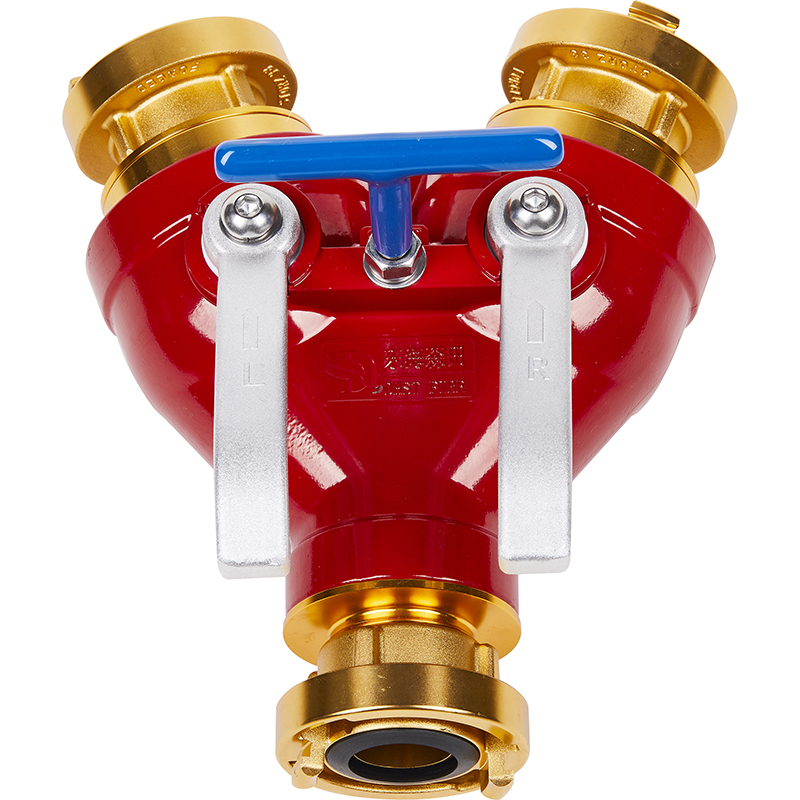

Two-Way Dividers: These units are ideal for dual-station industrial cooling. They effectively split primary fire lines into two equal streams. Operators use them frequently in manufacturing plants to route water continuously.
Three-Way Dividers: These are best for complex emergency scenarios. They provide multi-angle coverage from a single hydrant or pump. Firefighters rely heavily on three-way systems to attack a blaze from multiple strategic points.
Feature | Ball Valve | Butterfly Valve |
|---|---|---|
Flow Path | Completely unobstructed | Slightly obstructed by the central disc |
Durability | Extremely high under intense pressure | Moderate to high; highly reliable |
Weight & Size | Heavier and bulkier | Lighter and more compact |
Best Application | Heavy industrial setups | Space-constrained environments |
System designers must match hose diameters perfectly. Standard inlets range from 65mm up to 300mm. Outlet combinations are fully customizable. For example, a heavy-duty setup might feature a 150mm inlet splitting into three individual 65mm outlets.
Decision Check: Always calculate required flow rates carefully. This crucial step prevents bottlenecking at the valve junction. Pushing massive water volume through a narrow valve creates severe friction loss. It starves the end-line nozzles of necessary pressure.
The metallurgical makeup of your equipment dictates its lifespan. Industrial environments destroy weak metals quickly. You must demand high-grade alloys and protective coatings.
Interfaces/Couplings: Look for forged A6061 aluminum magnesium alloy. Forging aligns the metal grain structure. This makes the couplings vastly stronger than standard cast aluminum. They resist stress cracking during intense water hammer events.
Valve Bodies: YL112 die-cast materials offer superior structural integrity. Die-casting creates smooth internal geometries. Smooth internal paths reduce water turbulence. Less turbulence guarantees steady exit pressure.
Anti-Corrosion Treatments: Demand anodized finishes or industrial-grade red powder coating. Bare metal rusts rapidly. These treatments withstand harsh environmental exposure easily. They protect against high salinity and chemical abrasion.
Robust equipment delivers strong operational returns across multiple sectors. Demonstrating exactly where these devices succeed helps facility managers justify procurement. These tools go far beyond basic firefighting.
Heavy manufacturing plants require precise fluid control daily. System failures here halt production entirely.
Machinery Cooling: Factories generate immense heat. Operators must route water simultaneously to multiple overheated units. Doing this without pressure degradation prevents expensive thermal shutdowns. A two-way configuration splits the cold intake perfectly. The A6061 alloy resists the sudden thermal shock smoothly.
Process Water Separation: Refineries safely isolate clean process water from wastewater streams. Cross-contamination causes immediate regulatory violations. High-quality valves ensure a complete, watertight seal. They keep distinct fluid pathways entirely separated.
Construction sites change their layouts constantly. They demand flexible, heavy-duty water routing. Temporary water lines often cross rough, unpaved terrain. Heavy machinery drives near these exposed lines daily. Equipment must survive abrasive dust and accidental impacts. It also must handle high PSI thresholds easily. Top-tier hardware reliably manages working pressures up to 250 PSI without failing.
Emergency responders face chaotic scenes. They require rapid deployment for multi-hose firefighting. Seconds matter when splitting a main supply line. A single hydrant must feed several attack teams simultaneously. One team attacks the primary fire. Another team protects adjacent structures.
Secondary applications include flood management. Natural disaster responses require rapid water redirection. Rescue teams pump muddy, abrasive floodwater away from critical infrastructure. The internal valves must handle this grit without seizing.
Proper hardware is useless if installed incorrectly. Following standard operating procedures ensures a safe, compliant setup. Never rush the implementation phase.
Evaluate the Source: Verify your water source capacity first. Assess whether you are drawing from a municipal supply, a private tank, or a natural reservoir. Municipal lines provide steady pressure. Tanks have strictly finite volumes.
Secure Approvals: Obtain all necessary permits before beginning work. Industrial facilities strictly regulate new plumbing additions.
Verify Codes: Ensure the planned layout complies strictly with local fire codes. You must follow NFPA standards regarding accessibility. Firefighters need entirely unobstructed access to the valves during an emergency.
Immobilizing the hardware is absolutely critical. Unsecured units transform into deadly projectiles under sudden pressure spikes.
Mounting Brackets: This remains the standard approach for solid concrete surfaces. Installers drill deep anchor holes. They use heavy-duty steel bolts to anchor the brackets firmly.
Welding: We recommend this method for permanent industrial steel structures. Clean the bare steel first. Weld the unit securely in place. You must apply post-weld anti-corrosion treatment immediately.
Straps and Clamps: Utilize these alternative tools when mounting to existing pipes or beams. They work well where drilling remains impossible. However, they require careful tension calibration. You must check this tension regularly.
Careless connections ruin perfect installations. Thread or couple the hoses precisely. Ensure perfect physical alignment. Crooked threads strip easily. Misaligned pipes also create internal air pockets. These air pockets cause severe friction loss. Finally, ensure tamper-proof chains are engaged. Lock the mechanisms tightly on industrial sites. This prevents unauthorized personnel from adjusting the critical water flow.
Field experience reveals several recurring mistakes. Avoiding these costly operational failures requires vigilance. Installers must prioritize long-term stability over rapid deployment.
Pitfall 1: Neglecting High-Pressure Immobilization
Risk: Sudden pressure surges hit the system forcefully. Unsecured dividers shift violently. They whip around uncontrollably. This damages nearby infrastructure. It directly endangers personnel standing nearby.
Fix: Mandate load-tested mounting brackets. Install them securely for any continuous high-PSI application. Never rely on pipe tension alone to hold heavy equipment in place.
Pitfall 2: Incorrect Valve Sizing and Flow Restriction
Risk: Operators often mismatch hose diameters. They connect oversized supply hoses to small divider outlets. This mistake causes severe GPM drops. The end-line nozzles starve for water. Firefighters lose necessary suppression power.
Fix: Audit your system's hydraulic calculations thoroughly prior to procurement. Work directly with a specialized water divider manufacturer. They verify exact sizing requirements. They ensure input volume matches output capacity perfectly.
Pitfall 3: Skipping Post-Installation Flow Tests
Risk: Installers often finish the job and leave immediately. Undetected leaks remain hidden inside the assembly. Faulty valve seals stay entirely unnoticed. They only fail later during an actual emergency. This causes catastrophic outcomes.
Fix: Conduct a live flow test immediately after installation. Bring the system up to maximum operational pressure incrementally. Inspect every joint and seal closely for escaping moisture.
Scalability and trust require ongoing maintenance. You cannot install this equipment and forget it exists. Environmental factors degrade even the toughest metals over time.
Valves often sit idle for many months. Internal moving parts calcify quickly. Open and close ball or butterfly valves fully. Do this exercise at least once a quarter. This simple motion breaks up mineral deposits. It completely prevents internal seizing. An unmovable valve is useless during a crisis.
Rubber gaskets naturally degrade over time. Inspect internal rubber gaskets biannually. Look very closely for dry rot. Search for particulate abrasion inside the housing. Sand and industrial grit destroy rubber seals rapidly. Replace these components immediately if you detect any wear. Keep spare gaskets readily available on-site.
Regularly inspect all structural welds and brackets. Check the main valve body carefully. Look for compromised powder coating. High-salinity environments accelerate rust aggressively. Chemical exposure eats through standard paints. Touch up any chipped areas promptly. Maintaining the exterior coating preserves the underlying alloy's structural integrity.
Properly installing these vital safety devices requires significant effort. You do more than just connect heavy hoses. You must select highly durable materials initially. Exact hydraulic sizing remains crucial for preventing friction loss. Structural immobilization keeps everyone safe during intense pressure spikes. The physical forces involved demand absolute respect.
Do not accept off-the-shelf liabilities. Standard retail hardware rarely survives harsh industrial realities. Consult a dedicated water divider manufacturer today. They specify the exact metallurgy required for your environment. They choose the appropriate valve type expertly. They will align the equipment perfectly to your facility's unique risk profile and strict compliance standards.
A: While specifications vary by design, high-quality industrial dividers are typically engineered to withstand working pressures up to 250 PSI. Always verify exact tolerances with the manufacturer based on the specific alloy and valve construction.
A: Ball valves offer excellent durability and a completely unobstructed flow path, making them ideal for high-pressure setups. Butterfly valves are often lighter and more compact, making them suitable for scenarios where space and weight are primary constraints.
A: Yes, many standard threaded or Storz-coupling models can be connected to hoses without special tools. However, securing the device to a facility structure safely requires professional hardware, including power drills, heavy-duty mounting brackets, or professional welding equipment.
