Angle Fire Hydrant Landing Valve

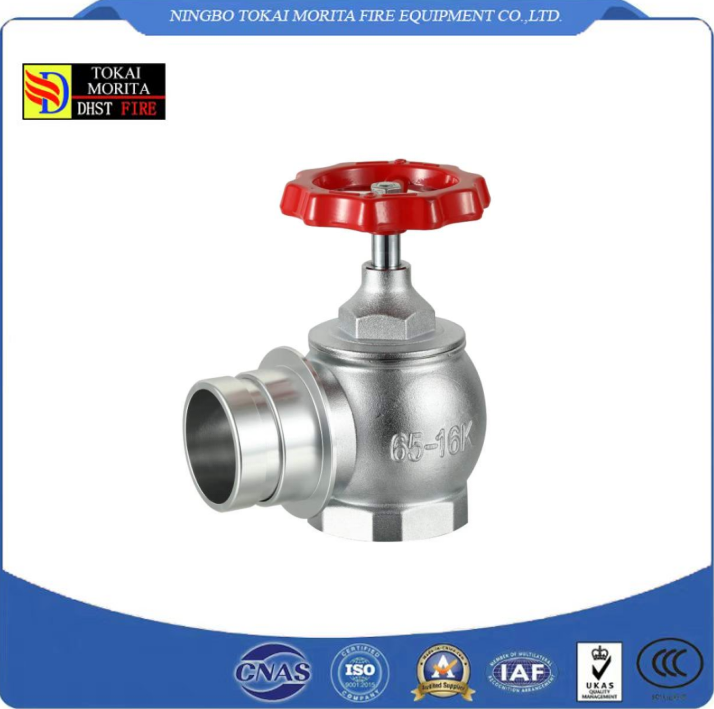

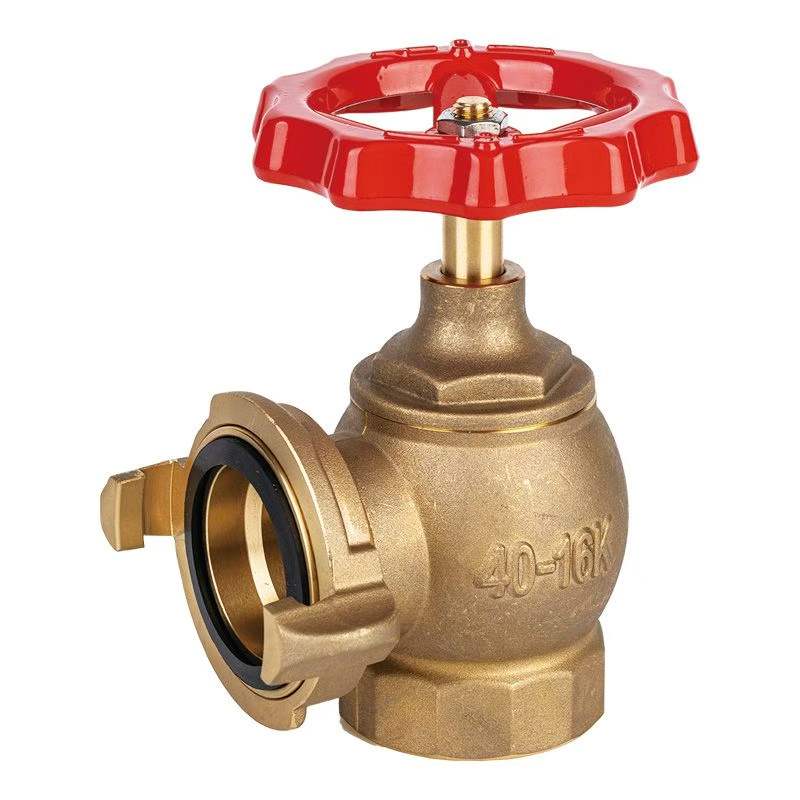

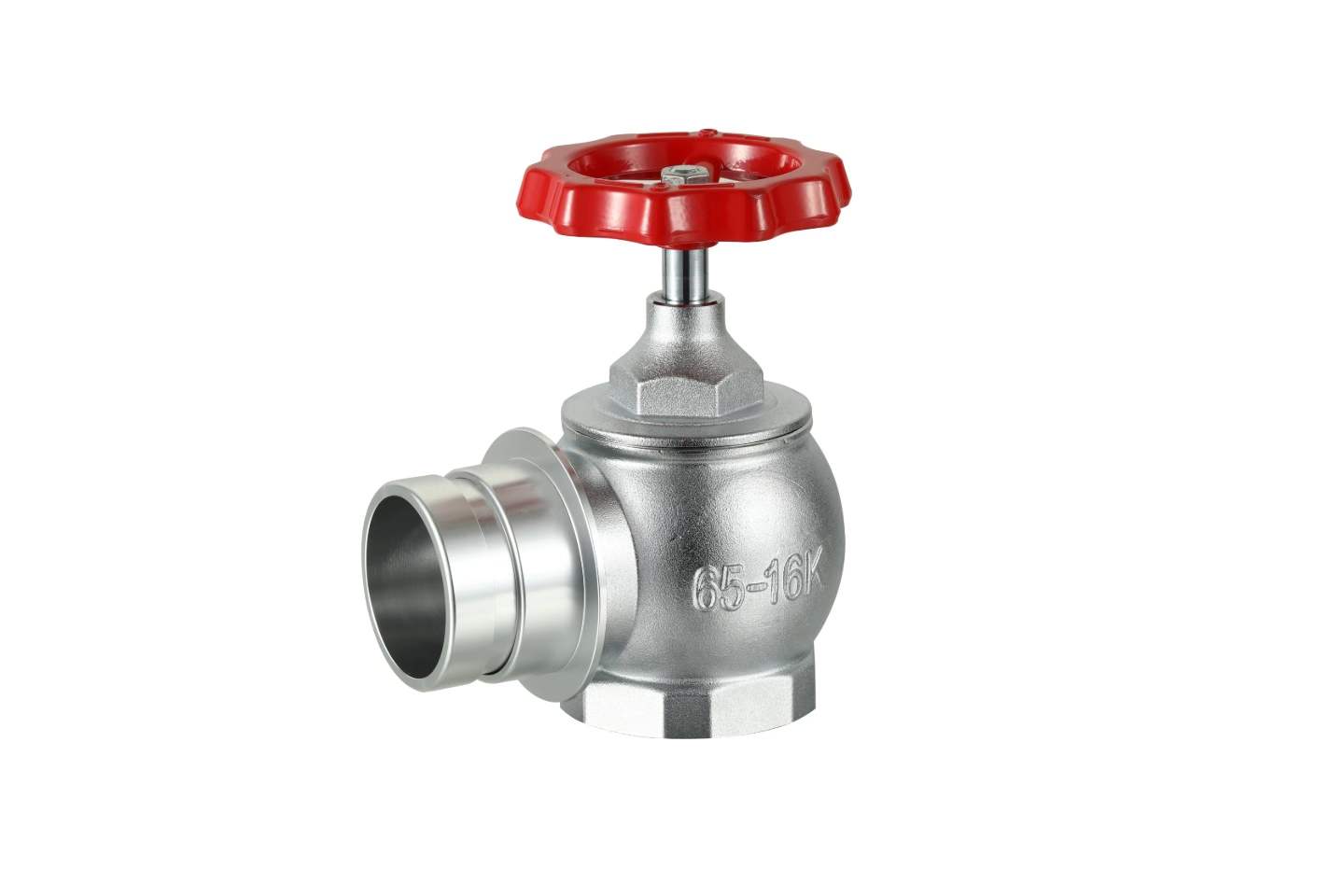

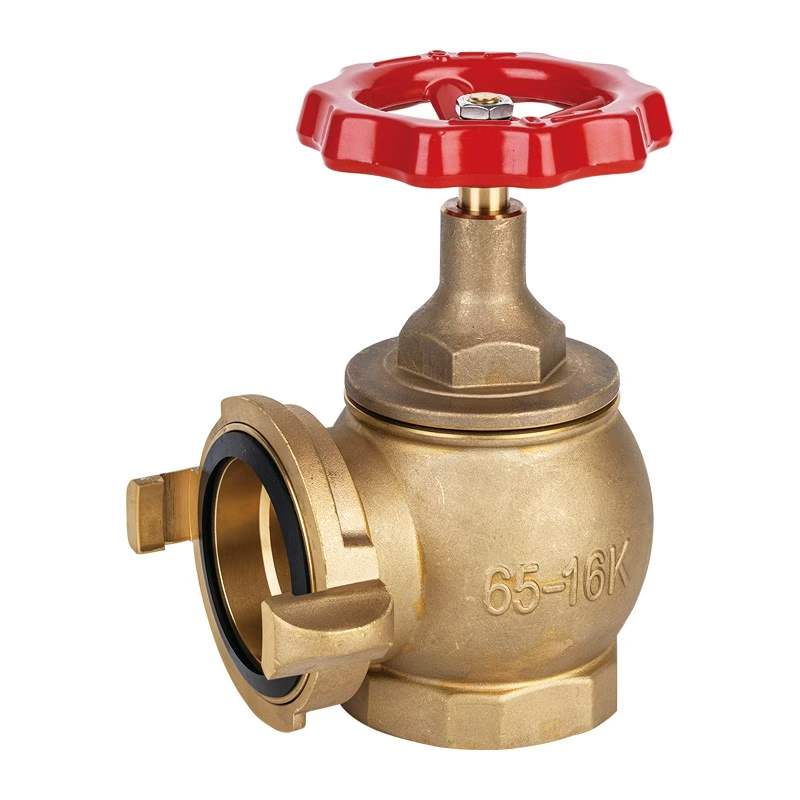

Our angle fire hydrant landing valve is widely used in building fire fighting systems. The compact 90° angled structure saves cabinet space and enables convenient, fast connection of fire hoses. The valve body is forged from high-grade aluminum alloy or brass, precision machined with smooth internal flow channel to minimize water resistance. The red anti-slip handwheel allows easy opening and closing, even when operators wear protective gloves. Rated working pressure is 1.6MPa, with hydrostatic test pressure up to 2.0MPa. The biggest advantage is flexible connection configuration: you can choose different inlet thread and outlet coupling types according to your market standard, including various fire hose couplings and thread specs. Standard sizes cover DN40, DN50, DN65. Customization on logo, surface finish and marking is available. It is commonly fitted in fire cabinets of high-rise buildings, hotels, factories, warehouses and shopping malls.
