Fire Hose Coupling are crucial in firefighting, ensuring quick, secure connections during emergencies. Choosing the right type impacts efficiency and safety. In this post, you'll learn about Storz and threaded couplings, comparing their designs, functionalities, and applications."

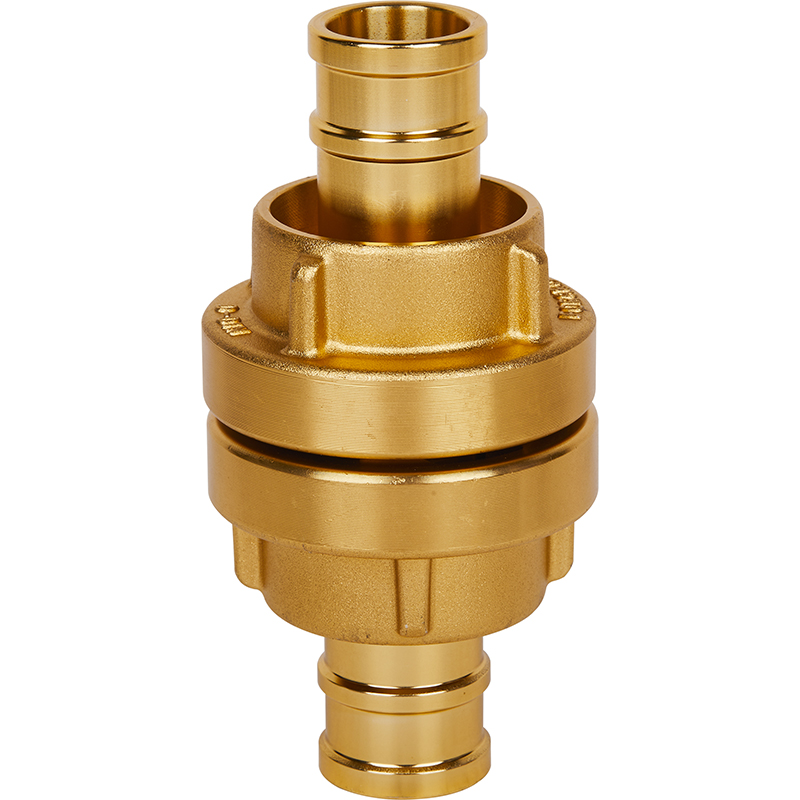

Storz couplings stand out because of their unique, sexless design. Unlike traditional threaded fittings that require matching male and female ends, Storz fittings are identical on both sides. This symmetry simplifies connections during emergencies, allowing firefighters to quickly attach hoses without worrying about matching genders. Any Storz coupling can connect to any other of the same size, saving valuable time when seconds matter. This design also reduces the risk of incorrect connections, which can happen with male-female mismatches.
One of the main advantages of Storz couplings is their quick-connection feature. Instead of screwing fittings together, firefighters just align the lugs on both couplings, press them together, and turn clockwise until they lock in place. This quarter-turn mechanism takes only a few seconds, drastically reducing setup time during fire emergencies. The ease of connection and disconnection means fire crews can deploy hoses faster, improving overall response times. This rapid connection process is especially critical in large-scale fires or high-pressure situations where every second counts.
Storz couplings are made from durable materials suited for harsh conditions. The most common materials include forged aluminum, brass, and stainless steel. Forged aluminum is popular because it offers a lightweight yet strong structure, making handling easier for firefighters. Brass couplings are known for their strength and resistance to corrosion, ideal for high-pressure applications. Stainless steel provides excellent durability, especially in environments with high humidity or exposure to chemicals. Manufacturers often treat these materials with special coatings or anodizing to enhance corrosion resistance and longevity. This focus on quality materials ensures that Storz couplings perform reliably over many years, even under demanding conditions.
Threaded fire hose couplings are made with two main parts: male and female threads. The male thread is on the outside of the fitting, like a screw. The female thread is on the inside, matching the male's shape. When connecting hoses or equipment, you screw the male end into the female end. This creates a tight, secure seal that can handle high water pressures during firefighting. The design ensures a reliable connection, preventing leaks and disconnections when water flows at high speeds.
Different regions and systems use various thread standards. The most common are:

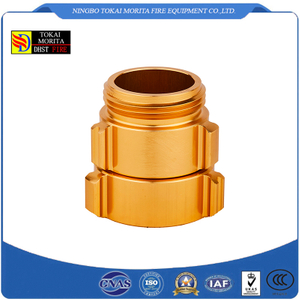

NH/NST (National Hose / National Standard Thread): Widely used in the US for fire hoses and hydrants. Features straight threads with gasket sealing. They are sexless, meaning any Storz coupling can connect to any other of the same size.
NPT (National Pipe Tapered): Tapered threads used in plumbing and industrial applications. They screw together tightly because of their tapered shape, which creates a seal as they tighten. NPT threads are common in larger fire hoses, typically 4-6 inches.
NPSH (National Pipe Straight Hose): Straight, non-tapered threads used mainly for low-pressure suction and discharge hoses. They often connect with NPT threads but require different fittings.
Understanding these standards helps prevent mismatched connections. For example, trying to connect an NPT fitting to an NST thread without an adapter can cause leaks or damage.
Materials vary based on use and environment:
Brass: Most common. Strong, corrosion-resistant, ideal for high-pressure firefighting.
Steel: Used in industrial settings. Very durable but heavier.
Stainless Steel: Excellent resistance to rust and chemicals. Suitable for harsh environments.
Aluminum: Lightweight, corrosion-resistant. Popular for portable or quick-deploy systems.
Choosing the right material depends on the application. Firefighters often prefer brass or stainless steel for their durability and resistance to corrosion, especially in outdoor or humid conditions.
One of the biggest advantages of Storz couplings is how quickly they connect. Firefighters can attach hoses in just a quarter turn, saving precious seconds during emergencies. This is a stark contrast to threaded couplings, which require screwing and unscrewing, often taking 30 seconds or more. The quick connect feature of Storz couplings allows for faster deployment, especially in large-scale fires or high-pressure situations where every second counts.
Threaded couplings, however, rely on male and female threads. Connecting them involves aligning the threads and screwing them tightly. While this provides a secure connection, it takes more time and effort. Threaded couplings are more prone to leaks if not tightened properly, which can slow down operations or compromise safety.
Storz couplings are designed to be sexless and symmetrical. Any Storz fitting can connect to another of the same size, regardless of gender. This universality simplifies operations and reduces the need for multiple adapters. Firefighters appreciate how easily they can connect hoses without matching male and female ends.
Threaded couplings depend heavily on matching thread standards. Different regions and equipment may use various standards like NST, NPT, or NPSH. This creates compatibility issues, especially during inter-agency cooperation or international aid. Firefighters often carry adapters to bridge these gaps, but this adds complexity and can cause delays.

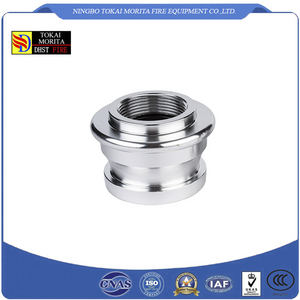

Regional variations in thread standards are common. For example, the US predominantly uses NST and NPT, while Europe might prefer Guillemin or BS336 couplings. These differences can hinder quick connections during emergencies, especially if the right adapter isn’t available.
Both Storz and threaded couplings are built from durable materials like aluminum, brass, or stainless steel. Storz couplings, especially those forged from aluminum, are lightweight yet strong, resisting corrosion and environmental damage. Their simple design means fewer parts to break or wear out, making maintenance easier.
Threaded couplings also last long if properly maintained. Regular inspection for damage or corrosion is essential. Threads can become worn or stripped over time, especially under high pressures or harsh conditions. Using appropriate thread sealants, like Teflon tape, helps prevent leaks and prolongs service life.
Cleaning and inspecting couplings regularly ensures optimal performance. Storz couplings are easier to clean due to their smooth, sealed surfaces. Threaded couplings require more attention to threads and gasket seals to prevent leaks.
Firefighting relies heavily on the right type of couplings to ensure quick, secure connections. Storz couplings are especially popular in many parts of the world due to their quick-attach design. They allow firefighters to connect hoses to hydrants, pumps, and other equipment rapidly, often in just a quarter turn. This efficiency can be lifesaving during emergencies when every second counts.
Hydrants equipped with Storz connections are common in Europe, Asia, and increasingly in North America. These hydrants feature built-in Storz nozzles or ports, making it simple for firefighters to attach hoses without threading or additional adapters. The design reduces connection time, minimizes errors, and improves overall response speed.
In firefighting equipment, Storz couplings are used not only on hoses but also on various accessories like distributors, collectors, and jet pipes. These components benefit from the quick-connect feature, streamlining operations during complex fire scenes. Firefighters can switch between different tools or hoses swiftly, maintaining high efficiency and safety.
Storz couplings have become a standard in many countries because of their versatility and reliability. Their symmetrical, non-shut-off design means they can connect in either direction, simplifying training and reducing connection errors. Because of this, many international firefighting agencies prefer Storz systems for their primary hose connections.
In Europe, Storz is often the default standard for fire hydrants and hoses. Countries like Germany, France, and the UK have adopted Storz widely, especially after standardization efforts emphasized its benefits. In Asia, countries such as Japan and South Korea also use Storz couplings in their firefighting infrastructure.
In North America, Storz is gaining popularity, especially in new developments or retrofit projects. Many cities retrofit hydrants with integral Storz nozzles or install adapters to convert older threaded systems. This transition aims to improve response times, reduce connection errors, and promote interoperability among different firefighting units.
Despite the global rise of Storz, threaded couplings remain prevalent in some regions due to tradition, existing infrastructure, or local standards. In the United States, threaded couplings like National Standard Thread (NST) and NPT are still common, especially on older systems. Firefighters in these areas often carry adapters to connect to Storz hoses or hydrants.
In parts of Canada, some regions still use threaded systems, although the shift toward Storz is underway. Similarly, in Australia and parts of the Middle East, threaded couplings dominate, especially in industrial or older firefighting setups.
The regional variation creates challenges for international cooperation. Firefighters may need to carry multiple adapters or rely on quick conversion tools to ensure compatibility. Understanding local standards and being prepared with the right equipment can make a significant difference during cross-border emergencies.
One of the biggest hurdles in firefighting is dealing with different standards for couplings across regions. Countries develop their own specifications based on local needs, infrastructure, and history. For example, in Europe, the BS336 Instantaneous coupling is common, especially in the UK and Ireland. Meanwhile, in the US, the National Standard Thread (NST) and NPT are widely used. These differences mean that fire hoses or equipment from one country might not fit perfectly with those from another, causing delays during emergencies.
This variation can be dangerous. When fire crews from different regions work together, incompatible couplings can slow response times or even prevent hoses from connecting at all. Some cities have invested heavily in retrofitting hydrants and connections with compatible fittings, but this process can be costly and time-consuming. In some cases, they opt for using adapters to bridge the gap between standards, but relying solely on adapters adds complexity and potential points of failure.
To address these compatibility issues, fire departments increasingly turn to adapters and conversion tools. These devices act like bridges, allowing hoses with one type of coupling to connect to equipment with another. For example, a department might use a Storz adapter to connect a quick-attach hose to a traditional threaded hydrant. This flexibility helps crews respond faster, especially during large-scale incidents involving multiple jurisdictions.
However, adapters are not perfect. They add an extra step in the connection process, which can slow down deployment if not readily available. High-quality, durable adapters made from corrosion-resistant materials like aluminum or stainless steel are essential. Proper maintenance and regular inspections ensure they stay in good condition, preventing leaks or failures during critical moments.
The best long-term solution involves promoting universal standards for fire hose couplings. The NFPA 1963 standard, for instance, provides detailed guidelines for threads, dimensions, and materials. When manufacturers adhere to these standards, it becomes easier for fire departments worldwide to use compatible equipment without relying heavily on adapters.
Standardization also simplifies training. Firefighters learn to operate a consistent type of coupling, reducing mistakes during emergencies. It enhances interoperability among international firefighting teams, especially in disaster response scenarios. Many organizations advocate for adopting such universal standards to streamline operations, cut costs, and improve safety.
Regional differences in standards pose significant challenges in fire hose compatibility. Using adapters offers a practical short-term solution, but promoting universal standards like NFPA 1963 provides a more sustainable path forward. Fire departments should consider investing in compatible equipment, regular maintenance, and training to ensure rapid, safe, and effective responses during emergencies. Collaboration among manufacturers, regulators, and fire agencies remains key to overcoming these compatibility hurdles and saving lives.
Choosing the proper fire hose coupling is crucial for efficiency and safety. Departments should consider compatibility with existing equipment and local standards. For example, in the U.S., National Standard Thread (NST) couplings dominate, so sticking to NST ensures smooth connections during emergencies. Conversely, many European departments prefer Storz couplings for their quick-connect design and sexless feature. Material choice matters too: aluminum offers lightweight handling, while brass provides strength for high-pressure use. Departments should also verify the size and thread type to avoid mismatches that can cost precious time.
Routine checks keep couplings reliable and ready for action. Firefighters should inspect couplings for cracks, corrosion, or worn threads. Gaskets and seals must be intact to prevent leaks. Cleaning couplings removes dirt and debris that can hinder connections. Testing hoses under pressure helps identify weak points early. Documentation of inspections supports accountability and tracks equipment condition over time. Proper maintenance extends coupling life and ensures quick, secure connections when seconds count.
Training is vital for smooth operations. Firefighters should practice connecting and disconnecting both Storz and threaded couplings under different conditions. Knowing how to identify coupling types and thread standards prevents costly errors. Training should include handling adapters, which often bridge incompatible systems. Simulated emergencies help crews gain confidence and speed. Regular refresher courses keep skills sharp and promote safety. Well-trained firefighters adapt quickly, improving response times and teamwork during real fires.
Storz couplings offer quick-connect capabilities and a sexless design, while threaded couplings rely on male-female threads. Choosing the right coupling enhances efficiency and safety in firefighting operations. Future trends may focus on universal standards and improved materials. TOKAI MORITA provides innovative coupling solutions, ensuring reliable and efficient performance in emergencies. Their products offer unique benefits, enhancing firefighting operations with advanced technology and durable materials.
A: A Fire Hose Coupling is a device used to connect hoses to hydrants, pumps, or other firefighting equipment, ensuring a secure and efficient water flow during firefighting operations.
A: Storz Fire Hose Couplings work with a symmetrical, sexless design, allowing quick connections by aligning lugs, pressing together, and turning to lock, saving time during emergencies.
A: Storz couplings offer quick-connect capabilities, reducing setup time. Their universal design avoids mismatches, unlike threaded couplings which require matching male and female ends.
A: Fire Hose Couplings are commonly made from durable materials like aluminum, brass, and stainless steel, chosen for their strength, corrosion resistance, and suitability for high-pressure use.
