In the high-stakes world of firefighting, every second counts. Have you ever wondered how firefighters quickly connect hoses to hydrants? The answer lies in fire hose couplings. These essential components ensure swift, secure connections, critical for effective firefighting. In this post, you'll learn about different fire hose coupling types and standards, their importance, and how to choose the right ones for your needs.
When it comes to firefighting, choosing the right coupling can make all the difference. There are several popular types, each designed for specific needs, offering unique features and benefits.
Camlock couplings are among the fastest and easiest to use. They connect two hoses or connect a hose to a water source without tools. The design features a lever arm that locks the connection securely. This quick setup is vital during emergencies when every second counts. Camlock fittings are available in various materials like aluminum, brass, and stainless steel, making them durable and resistant to corrosion. Their leak-proof design ensures water flows smoothly without loss, which is crucial during firefighting operations.

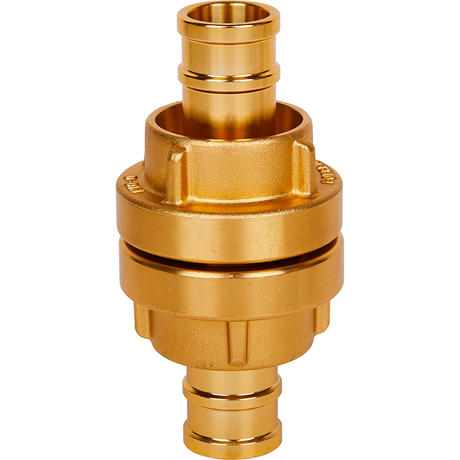

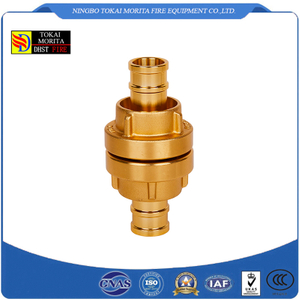

Storz couplings are sexless, meaning they don't have male or female ends. Instead, they feature lugs that twist and lock together, allowing a quick, secure connection. Their symmetrical design simplifies matching hoses and equipment. Firefighters favor Storz fittings for their speed and reliability, especially in Europe and increasingly in the US. They are often used on large-diameter hoses, hydrants, and tankers. The absence of threads reduces the risk of cross-threading or mismatches, making them highly efficient in high-pressure situations.
Guillemin couplings are also sexless, designed for easy connection and disconnection. They feature a locking latch and a rotating ring that tightens the connection. This design allows connecting hoses of different sizes and types effortlessly. Guillemin fittings are highly versatile, suitable for various applications, including both high-pressure and low-pressure systems. Their adaptability makes them especially useful when working with diverse firefighting equipment, ensuring quick setup even in complex scenarios.
Pin lug couplings are traditional, cost-effective options widely used in firefighting. They consist of a female and male component with lugs that are secured using pins or wrenches. These fittings are straightforward, durable, and easy to maintain. They work well under moderate pressures and are suitable for standard hoses and equipment. Their affordability makes them a popular choice for many fire departments, especially where budget constraints exist. Properly maintained, pin lug couplings provide reliable service over many years.
In firefighting, standards for fire hose couplings ensure compatibility, safety, and reliable operation across different equipment and regions. Knowing these standards helps firefighters quickly connect hoses, hydrants, and pumps without delays or leaks.
This is the most common thread type used in North America. It features a 11.5 threads per inch (TPI) pitch with a 1.5-inch diameter for typical fire hoses. NST/NH threads are designed to be compatible with most firefighting equipment, making them the industry standard. They are easy to identify because they have a consistent thread pitch and diameter, and often bear markings like "NST" or "NH."
NPSH threads are straight, with a 1.5-inch diameter, used mainly for low-pressure water suction or discharge hoses. They are common on larger equipment like pumps and tankers. NPSH threads are easily distinguished by their straight profile and are often paired with fittings that have similar straight threads for quick, secure connections.
NPT threads are tapered, meaning they gradually decrease in diameter along the thread's length, creating a tight seal when threaded. They are widely used in plumbing, industrial, and some firefighting applications, especially where permanent or high-pressure connections are needed. NPT threads are identified by their tapered profile and are often marked with "NPT" on fittings.
GHT is a different standard used mainly for garden hoses and some special firefighting equipment. These threads are larger and have a different pitch compared to NST or NPT. Fire departments might use GHT fittings for certain outdoor or non-standard applications. GHT fittings are easily recognizable by their coarse thread and larger size, typically 3/4 inch or 1 inch.
Using the correct coupling standard prevents mismatches that can cause leaks, disconnections, or dangerous failures during firefighting operations. For example, connecting a garden hose GHT to a high-pressure fire hydrant could lead to leaks or detachment. Similarly, mismatched NPT and NST threads can cause permanent damage or unsafe connections.
While some standards like NST and NPSH are designed to be compatible, they are not interchangeable without adapters. Always check markings on fittings or hoses to confirm the standard. Using the right standard ensures quick, secure connections, saving valuable time during emergencies.
| Standard | Thread Type | Typical Use | Key Features |
|---|---|---|---|
| NST/NH | Straight | Fire hoses, hydrants | Common, reliable, easy to identify |
| NPSH/IPT | Straight | Pumps, tankers | Larger size, low-pressure applications |
| NPT | Tapered | Fixed piping, high-pressure | Creates tight seal, permanent connections |
| GHT | Coarse, large | Garden hoses, special uses | Larger size, distinctive thread |
Always verify the markings on your equipment. When in doubt, consult manufacturer specifications or industry standards documents. Properly matching coupling standards ensures safety, efficiency, and swift response during firefighting operations.
Tip: Always carry adapters if your equipment uses different standards. They prevent delays and ensure secure, leak-free connections.
Choosing the correct fire hose coupling starts with understanding the size and material that best fit your needs. Size is crucial because mismatched fittings can cause leaks, delays, or even disconnections during critical moments. Typically, fire hoses come in standard sizes ranging from ¾ inch to 6 inches in diameter. Ensuring the coupling matches the hose diameter is essential for a secure connection. For example, a 2½-inch coupling is common for attack hoses, while larger sizes like 4 or 5 inches are used for supply lines or large-diameter hoses.
Material choice also impacts durability and performance. Aluminum couplings are lightweight and resistant to corrosion, making them suitable for most firefighting environments. Brass offers excellent durability and corrosion resistance, especially in harsh conditions. Stainless steel provides high strength and is ideal for high-pressure scenarios or corrosive environments. Conversely, polypropylene or plastic couplings tend to be less durable and are generally used for low-pressure or temporary applications.
Another vital factor is working pressure. Fire hoses and couplings must withstand high water pressures, especially during intense firefighting operations. Always verify the maximum working pressure rated for the coupling. For example, couplings made from aluminum or brass typically handle pressures up to 300-400 PSI, whereas stainless steel fittings can often tolerate even higher pressures.
Selecting fittings with appropriate pressure ratings ensures safety and prevents failures. If you expect to operate under extreme pressures, choose couplings specifically designed for high-pressure use. Ignoring this can lead to coupling failure, water leaks, or dangerous disconnections.
Safety standards and certifications protect personnel and ensure reliable equipment. Look for couplings certified by recognized organizations such as CE (Conformité Européenne) or ISO (International Organization for Standardization). These certifications confirm the fittings meet industry safety, quality, and performance standards.
Compliance with standards like NFPA (National Fire Protection Association) also matters. NFPA 1963, for example, sets guidelines for fire hose couplings, emphasizing strength, durability, and leak-proof design. Using certified couplings reduces liability risks and ensures interoperability with existing firefighting equipment.
When selecting fire hose couplings, prioritize matching the size to your hoses, choosing durable materials suited for your environment, and verifying pressure ratings. Always opt for certified fittings aligned with industry standards. Proper selection enhances operational efficiency, safety, and longevity of your firefighting equipment.
Tip: Always carry a variety of adapters and couplings to quickly address mismatched fittings during emergencies, saving valuable response time.
Understanding how fire hose couplings connect is essential for quick, reliable setups during emergencies. There are two main connection methods: threaded and threadless. Each has its advantages and specific use cases.
Threaded connections involve screwing fittings together using male and female threads. They are common because they provide a secure, leak-proof seal. Firefighters often use NPT (National Pipe Tapered) or NST (National Standard Thread) fittings for these connections. To connect, align the threads, turn clockwise until tight, and ensure a proper seal with thread tape or sealant if needed. Threaded fittings are ideal when a strong, permanent connection is required, such as attaching hoses to hydrants or pumps.
Threadless connections, like Storz couplings, use a quick quarter-turn mechanism. They feature lugs that twist and lock without threading. These fittings allow rapid connection and disconnection, saving valuable time. They’re especially useful for large-diameter hoses, hydrants, or when frequent connections are needed. To connect, simply insert the lugs, twist until locked, and ensure the connection is secure.
Fittings come in three genders:
Male fittings have external threads. They screw into female counterparts.
Female fittings have internal threads. They receive male fittings.
Ungendered fittings, like Storz, are sexless. They connect via quick-attach lugs, no threads involved.
Knowing the gender helps prevent mismatches. For example, a male hose coupling connects to a female hydrant outlet. Using the wrong gender can cause leaks or delays.
Compatibility is key. Always check the thread type and size on existing equipment before connecting. For threaded fittings, match the thread standard (NPT, NST, BSP, etc.) and size, typically measured in inches (e.g., 2.5-inch). For threadless fittings, ensure the size and type (like Storz) match the equipment.

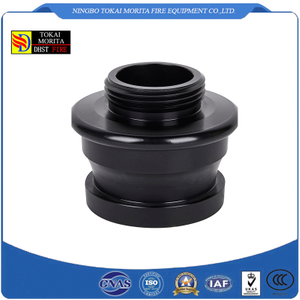

Adapters can bridge different standards or genders. For example, if a hydrant has a 3-inch Storz outlet but your hose has a 2.5-inch NST coupling, an adapter is needed. Using mismatched fittings risks leaks, disconnection, or equipment damage.
Always inspect fittings before use. Look for cracks, corrosion, or damage.
Clean fittings and apply appropriate thread sealant or tape for threaded connections.
Tighten fittings securely but avoid over-tightening, which can damage threads.
When using quick-connects, ensure lugs are fully engaged and locked.
Practice connecting and disconnecting to improve speed and confidence.
Threaded connection: Male (external) screws into female (internal). Seal with tape.
Threadless connection: Lugs twist and lock without threads, offering fast setup.
Compatibility: Match size, standard, and gender. Use adapters if necessary.
Mastering these connection techniques helps firefighters deploy hoses faster, reduce leaks, and improve overall safety. Proper connection methods are crucial during high-pressure, time-sensitive firefighting efforts.
Firefighting is a high-stakes job that demands quick thinking and reliable equipment. Even with the best tools, challenges can arise during operations. Knowing these common issues and how to address them can make a big difference in ensuring safety and efficiency.
One of the biggest problems in firefighting is mismatched connectors. When hoses, couplings, or adapters don’t fit together properly, it causes delays, leaks, or even disconnections. These mismatches often happen because different regions or departments use varying standards. For example, a fire department with NST couplings might try to connect with equipment using NPT fittings, which don’t always match directly.
Solution: Always double-check the standard, size, and gender of fittings before connecting. Carry a variety of adapters to bridge different standards quickly. Training personnel to identify and verify fittings reduces mismatches during emergencies.
Fire hoses and couplings must withstand intense water pressure. Problems occur when fittings aren’t rated for the pressure they face. Over time, high-pressure use can cause fittings to loosen, crack, or burst. This can lead to water leaks or dangerous disconnections in the middle of a firefight.
Solution: Select couplings rated for the maximum expected pressure. Regularly inspect fittings for signs of wear or damage. Tighten connections properly, and avoid over-tightening, which can damage threads. Use high-quality, certified fittings designed for high-pressure applications.
Couplings are exposed to harsh environments—heat, chemicals, corrosion, and physical wear. Over time, these factors weaken the fittings, reducing their effectiveness. Corroded or damaged couplings can leak, fail under pressure, or disconnect unexpectedly.
Solution: Implement routine maintenance routines. Regularly clean and inspect couplings for corrosion, cracks, or deformities. Replace damaged fittings promptly. Store equipment properly—dry, clean, and protected from the elements. Use corrosion-resistant materials like stainless steel or brass when possible.
Training: Regularly train firefighters on proper connection techniques and troubleshooting.
Documentation: Keep records of inspections, repairs, and replacements.
Use quality fittings: Invest in certified, durable couplings suited for the operational environment.
By understanding these common challenges and applying practical solutions, firefighters can improve safety, reduce equipment failure, and respond more effectively during emergencies. Proper maintenance and vigilance keep the water flowing where it’s needed most—saving lives and property.
Tip: Regularly schedule equipment inspections and replace any fittings showing signs of wear to prevent failures during critical firefighting moments.
Modern fire hose couplings now feature innovative materials designed to reduce weight without sacrificing strength. Manufacturers are turning to advanced composites and lightweight metals such as aluminum alloys, which provide excellent durability while making hoses easier to handle during operations. These materials help reduce firefighter fatigue, especially during extended firefighting efforts. For example, aluminum couplings are corrosion-resistant, lightweight, and capable of withstanding rough handling and harsh environments.
Coatings play a vital role in extending the lifespan of fire hose couplings. Recent advancements include coatings that resist corrosion, abrasion, and heat damage. These coatings, such as specialized polymer or ceramic-based layers, protect couplings from saltwater, chemicals, and extreme temperatures. This results in fewer replacements and less downtime. Enhanced coatings also improve the seal integrity, preventing leaks even after prolonged use or exposure to challenging conditions. Some couplings now feature anti-fog and anti-slip coatings, which aid in quick handling during emergencies.
Environmental consciousness influences the latest developments in fire hose coupling technology. Manufacturers are exploring eco-friendly materials that are recyclable or biodegradable, reducing waste and environmental impact. For instance, some couplings are now made from recycled metals or bio-based plastics that meet industry durability standards. Additionally, innovations include water-based or environmentally safe coatings that do not release harmful chemicals during manufacturing or disposal. These green solutions help fire departments meet sustainability goals without compromising performance.
Looking ahead, expect further integration of smart technology into fire hose couplings. Sensors could monitor pressure, temperature, or coupling integrity in real-time, alerting firefighters to potential failures before they happen. Rapid prototyping and 3D printing may also enable custom couplings tailored to specific operational needs. As materials evolve, couplings will likely become even lighter, stronger, and more environmentally friendly.
By embracing these technological advancements, fire departments can enhance operational efficiency, safety, and sustainability. The continuous evolution of fire hose coupling technology ensures firefighters are better equipped to protect lives and property under increasingly demanding conditions.
Fire hose couplings are vital in firefighting, with types like Camlock, Storz, Guillemin, and Pin Lug offering unique benefits. Proper selection and maintenance ensure safety and efficiency, preventing mismatches and failures. Future trends include lightweight materials, enhanced coatings, and eco-friendly innovations, improving performance and sustainability. TOKAI MORITA provides advanced coupling solutions, offering durability and reliability, supporting firefighters in demanding conditions. Their products enhance operational effectiveness, ensuring quick, secure connections during emergencies.
A: A Fire Hose Coupling is a device used to connect hoses or attach hoses to water sources, crucial for efficient firefighting operations.
A: Camlock Fire Hose Couplings use a lever arm to lock hoses securely, allowing quick, tool-free connections during emergencies.
A: Storz Fire Hose Couplings are popular due to their symmetrical, sexless design, enabling fast, reliable connections without threading.
A: Prevent mismatches by verifying the standard, size, and gender of Fire Hose Couplings and using adapters when necessary.
